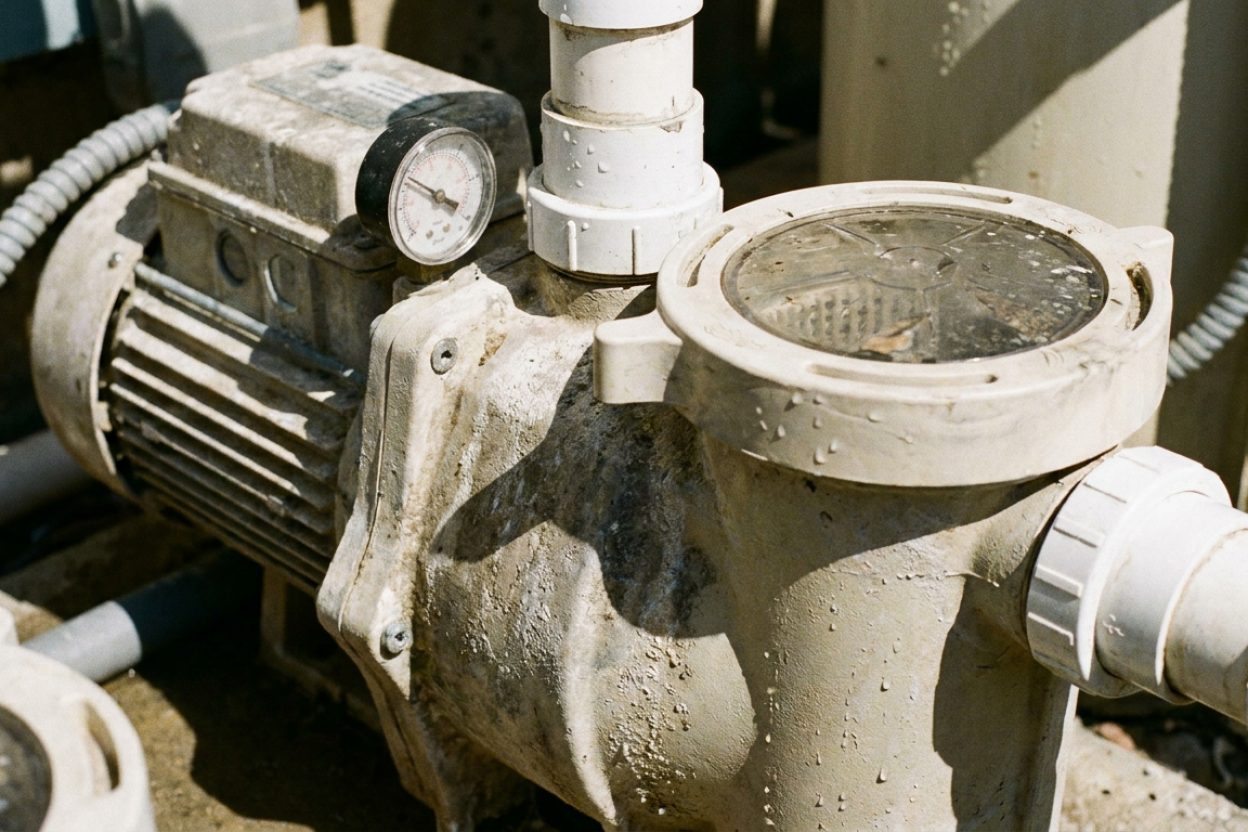

How to Reset Pentair Variable Speed Pool Pump - Complete Guide

Diagnosing Your Reset Need

Before jumping into reset procedures, identify what's prompting the reset:

• Error codes on display: Flashing lights or error messages indicate system faults
• Pump won't start: No response when attempting to turn on
• Speed programming lost: Pump runs but ignores programmed schedules
• Communication errors: Pool automation system can't control the pump
• Erratic operation: Pump starts and stops randomly or runs at wrong speeds

Basic Power Reset (Soft Reset)

This is your first line of defense and clears most common Pentair variable speed pump glitches:

1. Turn off the circuit breaker that powers your pool pump at your electrical panel
2. Wait at least 60 seconds (until the display goes fully blank) to ensure the drive's capacitors discharge completely
3. Restore power by turning the breaker back on
4. Observe the startup sequence - the pump should go through its initialization routine
5. Check the display for normal operation indicators

Safety Warning: Never attempt to reset the pump while it's running. Stop the pump first, then use the circuit breaker - this gives the drive a clean, controlled power-down and avoids an abrupt shutdown.

Factory Reset for Programming Issues

If the basic reset doesn't resolve your issue, you may need to perform a factory reset, which clears all programming:

IntelliFlo VS (e.g. VS-3050)

1. Make sure the pump is powered on (green power LED lit)
2. Press Stop to stop the pump
3. Press and hold all four Speed buttons at once for about 4 seconds
4. Turn the drive off at the breaker, then re-energize — the factory defaults are now in effect (your saved speeds are erased)
5. Reprogram your speeds and schedules from scratch

There is no 'CLEAR' confirmation prompt on an IntelliFlo VS — the reset is the four-button hold plus a power cycle. Newer touchscreen IntelliFlo3 / IntelliPro3 VSF models reset differently (disable the pump, then follow the on-screen prompt), so check the steps in your model's manual.

SuperFlo VS

1. With the pump powered on, press and hold the Stop and Override buttons together for about 3 seconds
2. Watch for confirmation — the bar-graph LEDs flash three times to show the factory defaults were restored
3. Reconfigure all settings, including speeds and schedules

Have a Hayward EcoStar? The EcoStar (SP3400VSP) is a Hayward variable-speed pump, not a Pentair, so these steps don't apply — check your Hayward owner's manual for its reset procedure.

Communication System Reset

If your Pentair pump is part of an automation system (IntelliCenter, EasyTouch, etc.), you may need to reset the communication link:

1. Reset the pump using the basic power reset method above
2. Reset your pool controller by cycling its power as well
3. Wait 2-3 minutes for both systems to fully initialize
4. Check communication by attempting to control the pump from your controller
5. Re-establish the link if necessary by following your controller's pump setup procedure

Troubleshooting Persistent Issues

If reset procedures don't resolve your problem, consider these additional factors:

Electrical Issues

• Voltage problems: Variable speed pumps require stable 220-240V power
• Loose connections: Check all wire nuts and terminal connections
• GFCI trips: May indicate moisture intrusion or ground faults

Environmental Factors

• Moisture infiltration: Check for water in the control box or junction boxes
• Extreme temperatures: Pumps may shut down in excessive heat or cold
• Debris interference: Clear any obstructions around the pump motor and control panel

Post-Reset Programming

After any factory reset, you'll need to reprogram your pump settings:

1. Set your primary filtration speed (typically 1200-1800 RPM for most pools)
2. Program cleaning speeds (2400-3000 RPM for skimming and vacuuming)
3. Configure time schedules to match your pool's filtration needs
4. Set up any special features like quick clean cycles or spa modes
5. Test all programs to ensure they operate as expected

When to Call a Professional

Contact a pool technician if:

• Reset procedures don't resolve the issue after multiple attempts
• You notice burning smells or hear unusual noises from the motor
• The pump trips your home's main electrical panel
• Error codes persist after factory reset
• You're uncomfortable working with 220V electrical systems

Prevention Tips

Minimize future reset needs by:

• Maintaining clean electrical connections with annual inspections
• Protecting the control panel from direct water exposure
• Keeping firmware updated if your model supports updates
• Monitoring for early warning signs like erratic operation or display anomalies

Remember that Pentair variable speed pumps are sophisticated electronic devices. While reset procedures can resolve many issues, persistent problems often indicate underlying electrical or mechanical issues that require professional diagnosis and repair.
