Can Pool Heater and Pump Share Same Circuit? Info Guide

Why Does My Pool Heater Keep Tripping the Breaker?

If your heater or pump trips the breaker the moment it kicks on - or a few minutes in, again and again - start here before you think about rewiring. A breaker that keeps tripping is usually doing its job: something is wrong, and repeatedly resetting it isn't the fix.

The common causes, roughly in order:

• A ground fault (most common with pool equipment). Moisture inside the heater, a failing heating element or igniter, a water-damaged wire, or a failing pump motor can leak current to ground. A GFCI breaker senses that and trips fast, often right when the equipment starts. If resetting only buys you a few minutes, treat it as a real fault, not a nuisance.
• An overload. This is the cause people assume, but it's less common. It happens when too much load sits on one circuit - for example a pump and heater sharing a circuit that's too small for both, or a circuit undersized for the equipment to begin with. Overload trips tend to come under sustained load rather than instantly on startup.
• A failing component. An aging pump motor, a corroded connection, or a heater control board can draw high or leaky current as it wears out, tripping the breaker even though nothing about the wiring changed.
• A nuisance GFCI trip. GFCI breakers can occasionally trip on the inrush of a large motor or as the breaker itself ages. This is the least likely explanation - rule out a real fault first.

If the heater and pump are currently sharing a circuit and it trips, splitting them onto their own circuits is part of the long-term fix - but you still want to find the underlying fault. An electrician with a meter can isolate whether it's the heater, the pump, the wiring, or the breaker in a few minutes.

Should They Share a Circuit? What the Code Actually Requires

It's tempting to look for one rule that says "a pool pump and heater can't share a branch circuit." It isn't there - Article 680, the part of the National Electrical Code (NEC) covering pools, has no blanket "separate circuits" mandate. What actually pushes them apart is a few independent requirements stacking up:

• The manufacturer's instructions. Pool equipment has to be installed the way it's listed and labeled, and the code (section 110.3(B)) makes those instructions enforceable. Most heaters - and many pumps - are listed for an individual branch circuit and marked with a minimum circuit ampacity. When the label says individual branch circuit, that's effectively a separate-circuit requirement, and it lives in the equipment listing rather than in Article 680.
• GFCI protection on each device. Pool pump motors require GFCI protection, and recent code cycles extend it to gas-heater circuits too. If a pump and heater share one circuit, a single pump nuisance-trip takes the heater offline with it - and you've tied two fault paths together right next to water, which is exactly what you don't want.
• A disconnect within sight of each unit. Each piece of equipment needs its own means to shut it off, within sight and a safe distance from the water, so it can be serviced without killing everything else.

Raw amperage usually isn't the deciding factor - a small pump plus a gas heater's controls might well fit inside one circuit's rating. The reason to separate them isn't that they won't fit; it's that the listing, the GFCI rules, and the disconnect rule each point the same way, and together they land each unit on its own circuit.

One caveat: which rules apply depends on the NEC edition your area has adopted.

Sizing Each Circuit

Pump Circuit

Size the circuit from the pump's nameplate maximum amperage - not its horsepower. (The code sizes motor circuits with a continuous-load factor; the pump's manual and your electrician give the exact breaker and wire.)

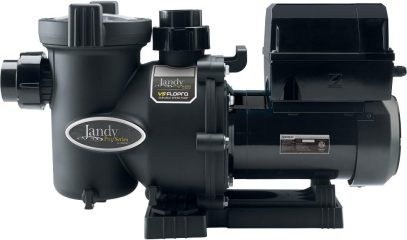

Here's what most charts get wrong: horsepower no longer predicts amperage. Old single-speed induction motors drew roughly in line with HP, but modern variable-speed pumps use efficient permanent-magnet motors that draw far less. A 3 HP variable-speed pump (such as a Pentair IntelliFlo) typically pulls only about 15A at 240V and runs fine on a 20A two-pole breaker with 12 AWG copper - not the 40-50A circuit an HP-based chart would tell you to pull. Sizing off horsepower overshoots in the expensive direction: bigger wire, a bigger breaker, and a panel slot, for nothing.

Match the wire gauge to the breaker, not the horsepower (12 AWG for 20A, 10 AWG for 30A, 8 AWG for 40-50A; step up a gauge on long runs where voltage drop matters). And when you swap a single-speed pump for a variable-speed model, the existing dedicated 240V circuit is very often already adequate - your electrician can confirm the breaker size and wire gauge are a match, and you may not need anything new.

Heater Circuit

Heater wiring depends entirely on the type - and most residential pools are at the small end, not the big one:

• Gas heaters (most common). The only electrical draw is the igniter, controls, and a small blower - a modest 15-20 amp circuit, not a subpanel. Under the 2017 code cycle, that circuit needs GFCI protection too.
• Heat pumps. A bigger draw, typically a 30-60 amp circuit depending on the unit's rating.
• Electric resistance heaters (least common on residential pools). These are the high-amperage case - often 60-100+ amps at 240V, sometimes needing their own subpanel. The code treats the heating elements as a continuous load, sizing the circuit and breaker at 125% of nameplate and subdividing large elements. If you have one of these, the exact sizing is a load calculation your electrician performs.

So don't brace for a subpanel by default - a typical gas heater just needs a small dedicated circuit. The big-amperage scenario is the exception, not the rule.

Equipotential Bonding

Beyond the circuits themselves, every pool needs equipotential bonding - and it's one of the things people most often skip or get wrong. Bonding ties the pump motor, heater housing, metal pool structure, ladders, and surrounding deck reinforcement together with a heavy copper conductor so they all sit at the same electrical potential. The point isn't to carry current under normal use; it's to make sure a fault can't put a voltage difference between two metal things a swimmer might touch at once. It's a separate requirement from grounding and from GFCI protection, and it applies whether your equipment is on one circuit or ten. Make sure your installer bonds both the pump and the heater into the grid.

GFCI Protection

GFCI (Ground Fault Circuit Interrupter) protection is required for pool pump motors - for the common voltage and amperage range most residential pumps fall in, that effectively means all of them, not just some. The requirement has widened cycle over cycle, and notably, replacing or repairing a pump motor can trigger the GFCI requirement even on an older installation that was originally compliant without it. As of the 2023 cycle, gas-fired heater circuits operating above the low-voltage range need GFCI protection as well.

GFCI devices protect against electrical shock by detecting ground faults and shutting off power within milliseconds. They're crucial safety devices around water - and, as the troubleshooting section above notes, a GFCI that keeps tripping is usually telling you about a real fault, not just being fussy.

Get a Licensed Electrician

Pool electrical work should be done by a licensed electrician, not as a DIY project. Pool systems carry safety requirements - GFCI protection, equipotential bonding, grounding, and clearances from water - that are easy to get wrong, and mistakes around water are dangerous and typically violate local code. This is one area where the right move is to bring in a pro and pull the permit. A good electrician will diagnose a tripping breaker, size each circuit to the equipment's nameplate, confirm whether an existing circuit can be reused, handle the bonding and GFCI, and get the work inspected.

Panel Capacity and Cost

Before adding pool equipment circuits, your electrician will check that your main panel can handle the extra demand; pool equipment can add anywhere from a modest gas-heater circuit to 50-150 amps for high-amperage resistance heating. If the panel is full, you may need a subpanel, a panel upgrade, or a service upgrade.

As a rough idea of cost, a simple dedicated 20-30 amp circuit usually runs a few hundred dollars; a high-amperage heater circuit or a panel upgrade can run into the low thousands. It's real money, but it's the cost of a safe, code-compliant, inspectable install - and cheaper than the equipment damage and hazards that come from cutting corners.
